Adaptors

PE807.37/ PE807.35/ PE807.29/ PE807.27

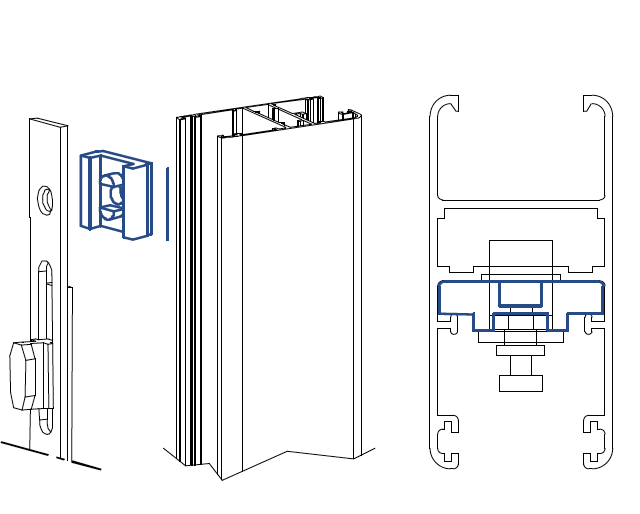

Used to adapted and fix the espag rod to the sash profile. The fixing kit includes Shims to adapt the rod to the profile. The shims snap fit and screw on the hardware.

Get a quote

Specifications

Series Name Adapters Set Dimension X(mm)

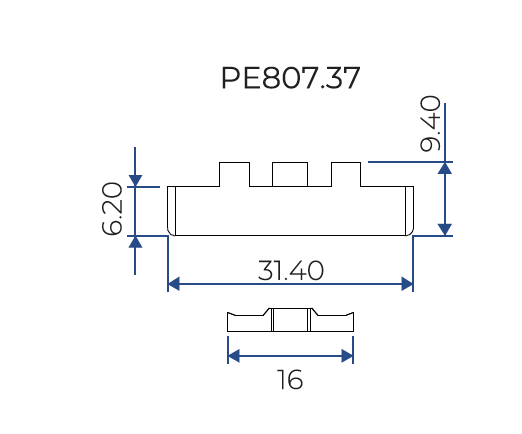

37mm PE807.37 39.0

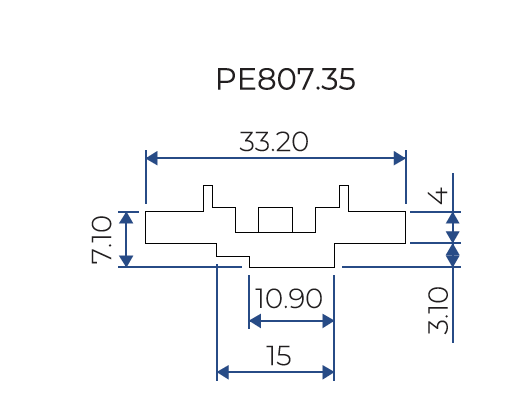

35mm PE807.35 40.0

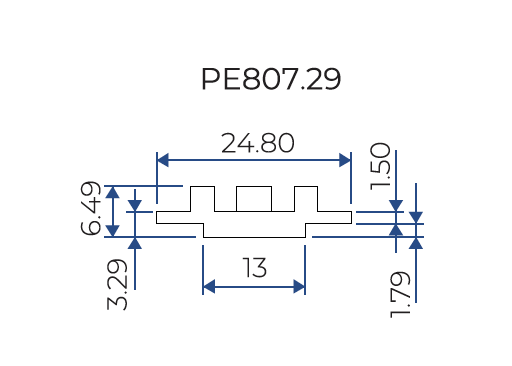

29mm PE807.29 38.0

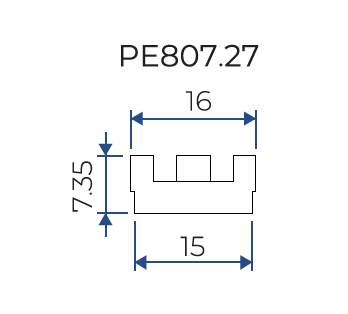

27mm PE807.27 39.0
